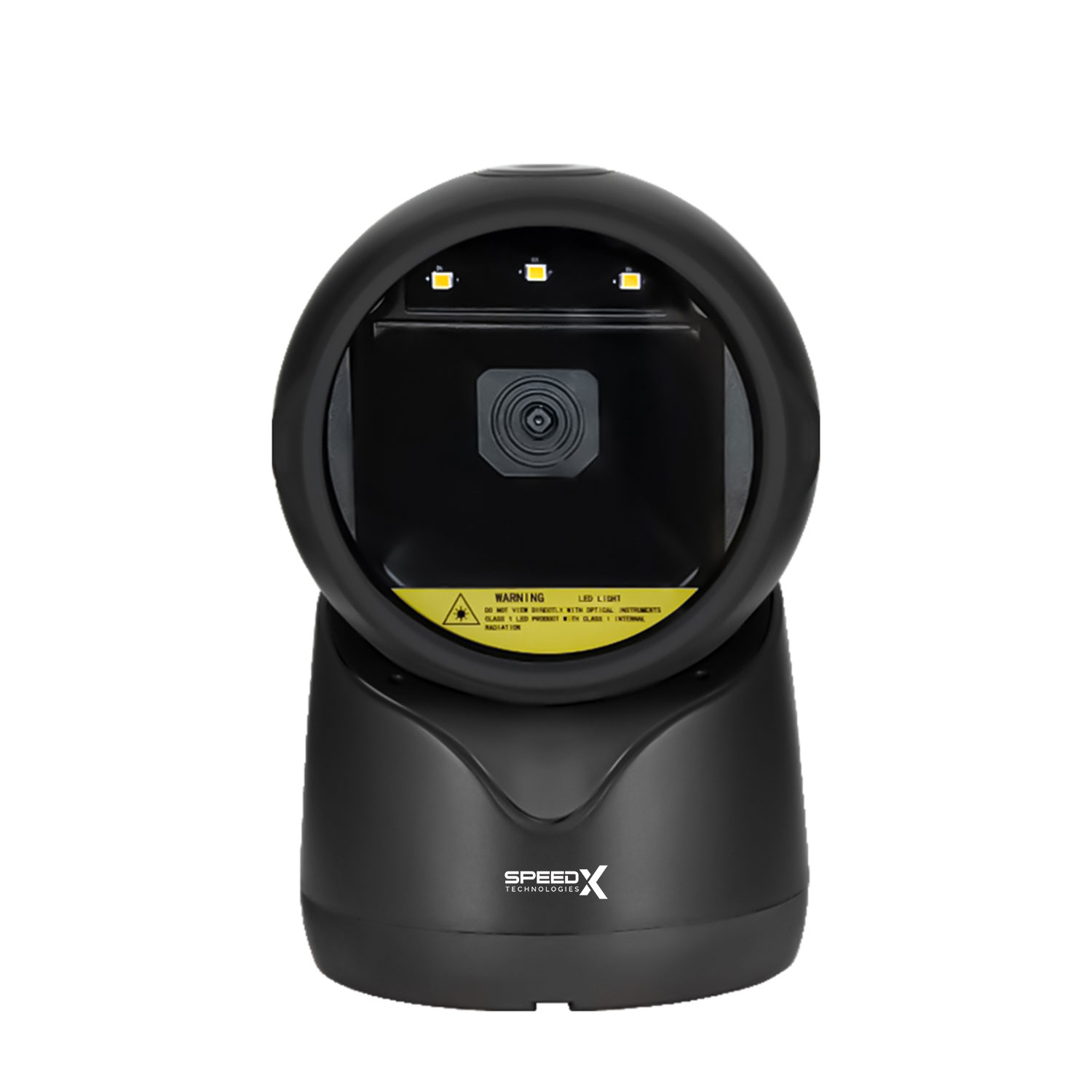

SPEED-X 9600 2D DESKTOP BARCODE SCANNER

Technical Specifications

Electrical Characteristics

Interface Supported

USB HID KEYBOARD/USB VCP

Input Voltage

DC 5V?5%

Current

Max:335mA

Optical Characteristics

Image Sensor

CMOS Array Sensor

Sensor Resolution

640 X 480 Pixels

Light Source

white LED

Decoding speed

60FPS

Performance Characteristics

Scanning Angle

Pitch angle:?65?;Skew angle:?65?;Tilt angle:?360?

Field of View

36H),27V)

Min Resolution

4mil

Min .PCS value

>20% UPC/EAN 13(13mil)

Language

Multiple Languages

Data Edition

Support for custom data output

Decode Capability

1D:Codabar,Code39,Interleaved2of5,NEC2of5,Code93 ,Straight 2 of 5 Industial,Straight 2 of 5 IATA ,Matrix 2 of 5 ,Code 11,Code128,GS1-128,UPC-A,UPC-E0,UPC-E1,EAN/JAN-13,EAN/JAN-8,MSI,GS1-DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded ,

China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8,Korea Post

2D:PDF417,QR Code,Data Matrix,Aztec code,HanXin code,MaxiCodeMaxi code,Micro PDF417

Physical Characteristics

Dimensions

94mm*100mm*152mm(L*W*H)

Weight

260g

Indicator

Beeper, LED

Environmental Characteristics

Temperature

-20??60?C (operation)

–30??70?C (storage)

Humidity

Relative humidity: 5% to 95% (no condensation)

Shock Drop Test

1.5m drop onto concrete surface

Symbology

Resolution

Nearest

Farthest

Code 39

5mil

10mm

90mm

Code 39

13mil

0mm

175mm

UPC-A

3.34mil

10mm

170mm

QR

20mil

0mm

130mm

QR

30mil

0mm

180mm

Pay Code(QR 3*3cm)

–

10mm

320mm

Pay Code(QR 2.3*2.3cm)

–

0mm

260mm
