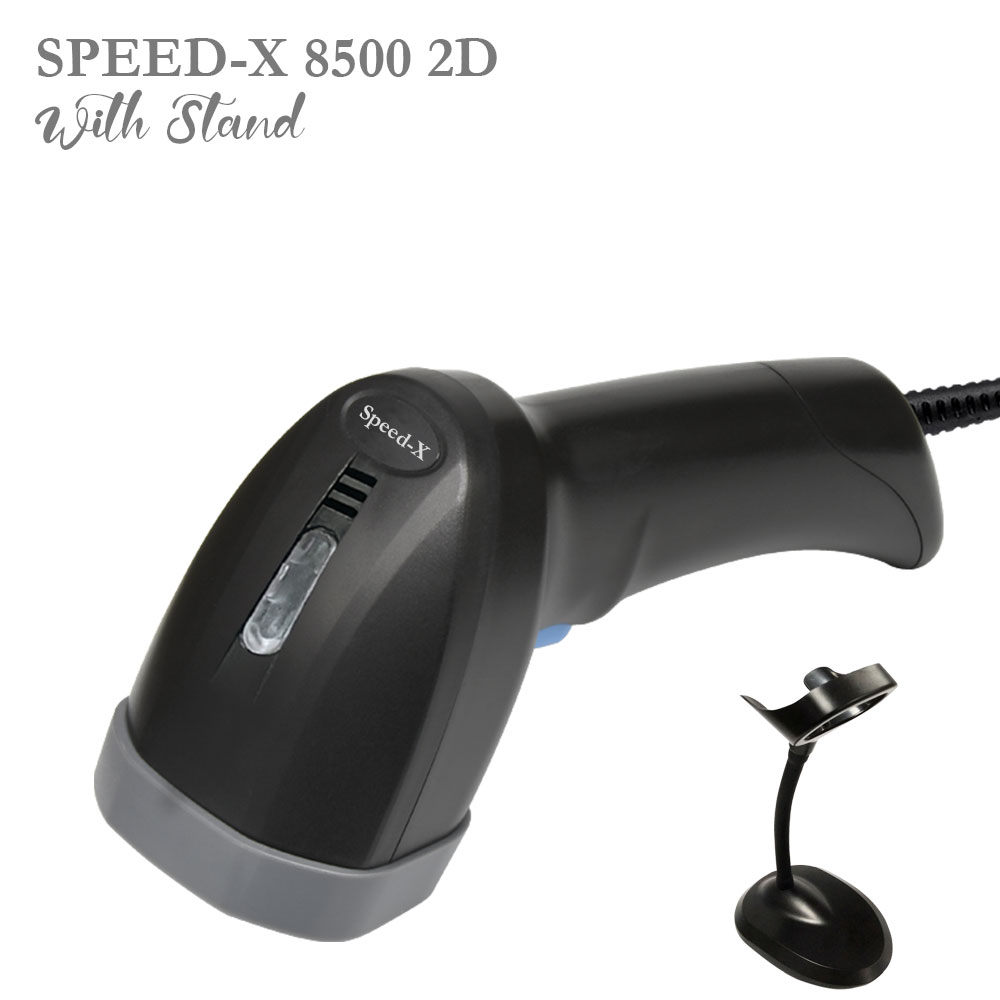

SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER WITH STAND

Title: SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER WITH STAND

Description: SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER WITH STAND –

Detail:

CMI-8010

2D Wire CMOS Handheld Barcode Scanner

Technical Parameters

Electrical Characteristics

Interface USB HID KEYBOARD/USB VCP

Voltage requirement 5VDC?10%

Current consumption Max:120mA

Optical Characteristics

Photo sensor CMOS array sensor

SENSOR RESOLUTION 648X488 pixels

Light source White LED*1

Aim light source Red Bar led

Performance Characteristics

Decode angle Pitch angle:?55?

Skew angle:?55?

Tilt angle:?180?

Min resolution 1D:4mil(0.127)

Min.PCS value >30%UPC/EAN 13(13mil)

Language multiple languages

Field of View 20?(H),21?(V)

Identification 1D:UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI

2D:QR, PDF417,Data Matrix

Physical Characteristics

Dimensions 67 mm H x97 mm W x165 mm D

Weight 122.8g

Environmental Characteristics

Temp -20?to 60?C / -4?to 140?F((operation) ) -40?-to 80?C /-40?to 176?F(storage)

Humidity 5 – 95% (operation) ) 5 – 95% (storage)

Shock drop test 1.5m drop onto concrete surface

Ambient Light: fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Regulatory

Electrical Safety UL 60950,EN/IEC 60950

EMI/RFI FCC Part 15 Class B,EN 55024/CISPR 22

Environmental RoHS

Depth of field

Symbology Resolution(mm) Depth of field

Code39 5.0 mil 40mm–90mm

100% UPCA 15.0mil 40mm?250mm

Code 39 15.0mil 40mm–250mm

Code 93 10.0mil 40mm–210mm

Price: Rs. 3,750

Weight: 0.50 KGs
